AUV CTD, Ultra Low Power Small Design ROV, Gliders, Floats

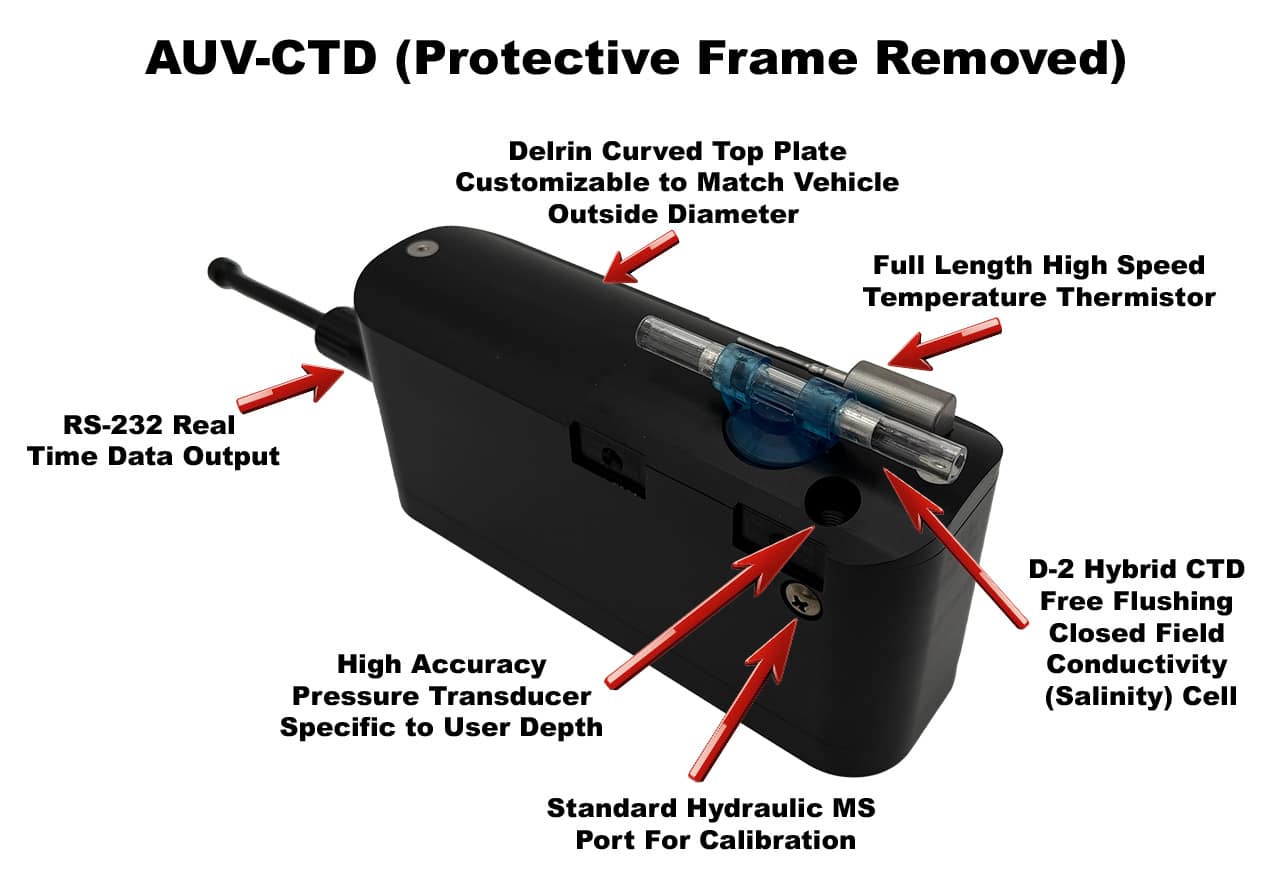

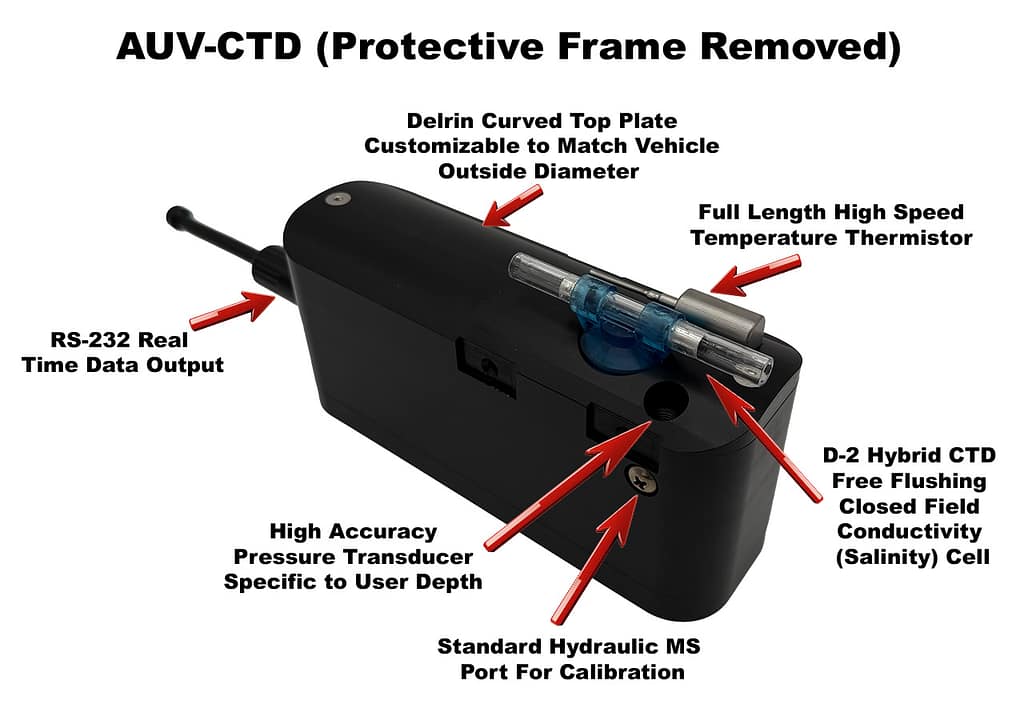

AUV CTD No Frame

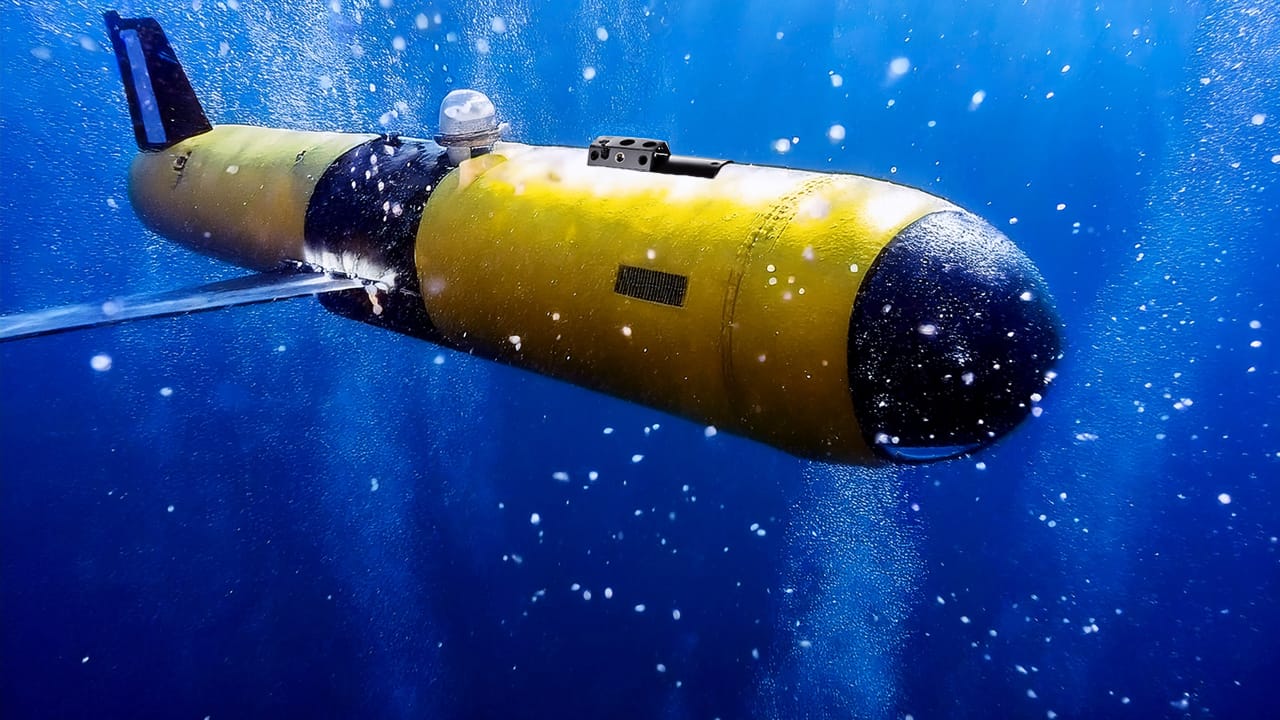

AUV CTD Perfect for AUVs, UUVs, USVs, Profilers, Gliders, ROVs, Floats, etc.

D2 has now packaged our Ocean CTD into a new design the AUV CTD that can be easily fit into existing vehicle mounts. Equipped with our new hybrid conductivity cell providing closed field precision without a pump. No pump makes our CTD silent and draw less power. These come in standard CTD mode with high speed 32 Hz sample rate and internal memory. Also available is Ultra Low Power CTDs that draw a mere 4mA and provides 2 Hz sample rate. Providing Salinity, pressure, and temperature data in easy to integrate housings for any AUV Platform.

Built from Delrin Housing with an Oil Filled Conductivity Cell that is extremely rugged. These are built to deploy to any depth on Earth and provide precision where it matters.

D2 can provide industry leading Fast Delivery Times. D2 with it’s own brand new salinometer can turn CTD calibrations around rapidly in two weeks or less. With rapid deployment of unmanned systems becoming more important, we can supply CTDs rapidly and with our D2 quality standards. Our equipment is built to be extremely rugged to withstand the harshest environments and conditions.

The AUV-CTD housing with glass filled Delrin has passed pressure testing to 4000 PSI, which means it can be deployed to 2,757 meters. AUV-CTD Pressure Test

Full Product Brochure: 315-001R1 AUV-CTD Brochure

Peer Reviewed Paper establishing the precision of the D-2 CTD by Woods Hole Oceanographic Institution: https://journals.ametsoc.org/view/journals/atot/43/3/JTECH-D-25-0073.1.xml

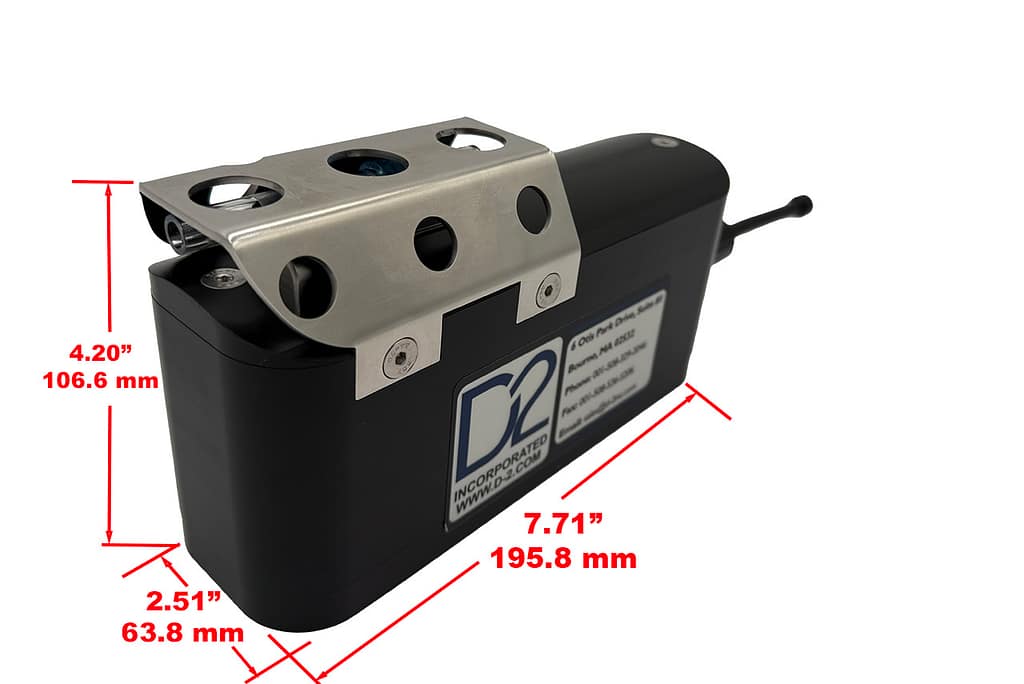

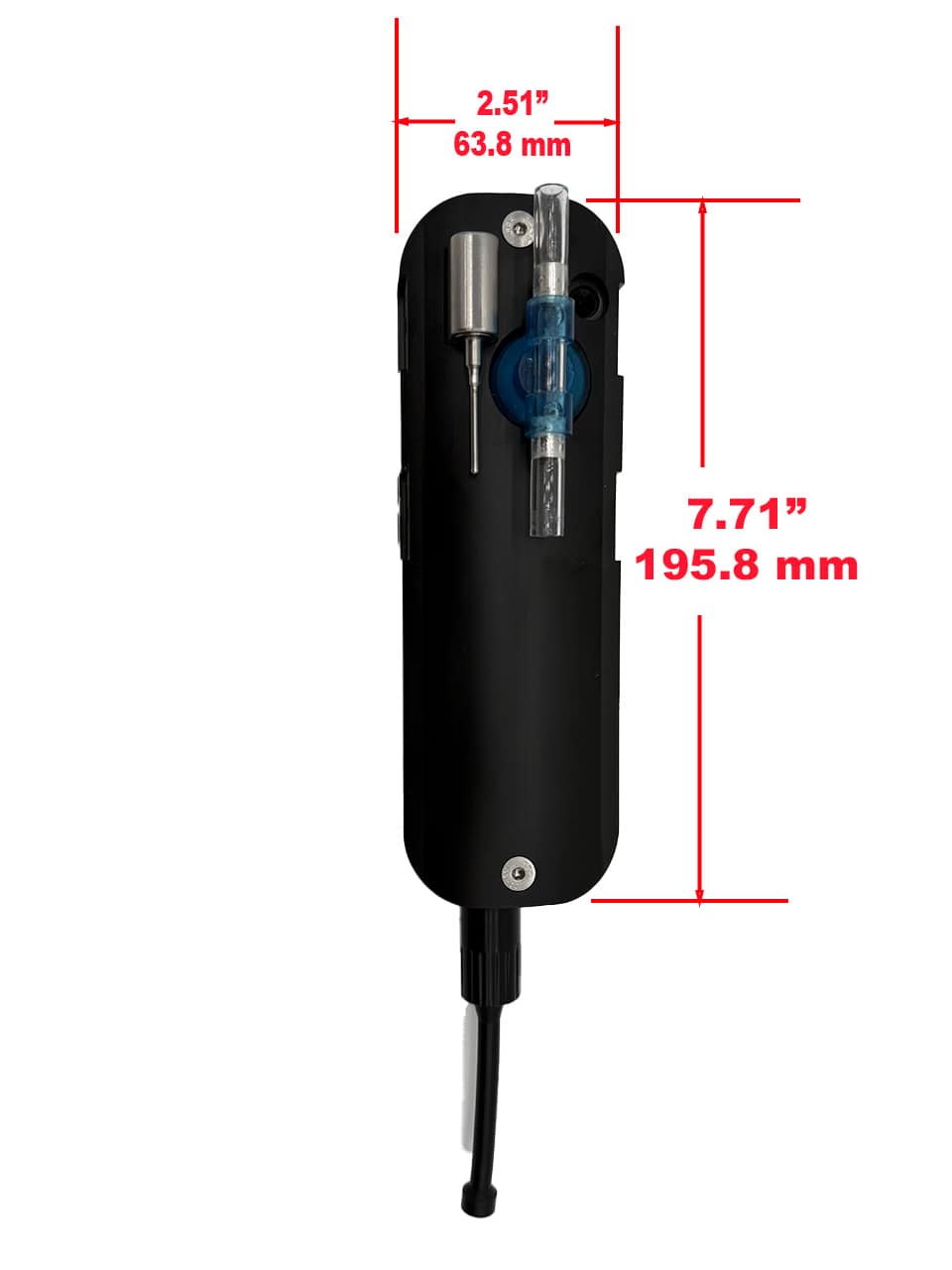

AUV CTD with Dimensions

Options and Extras:

1) Pressure Transducer Depth Range

2) Frame

3) User Set Depth Options

4) Ultra Low Power 4mA at 10 VDC

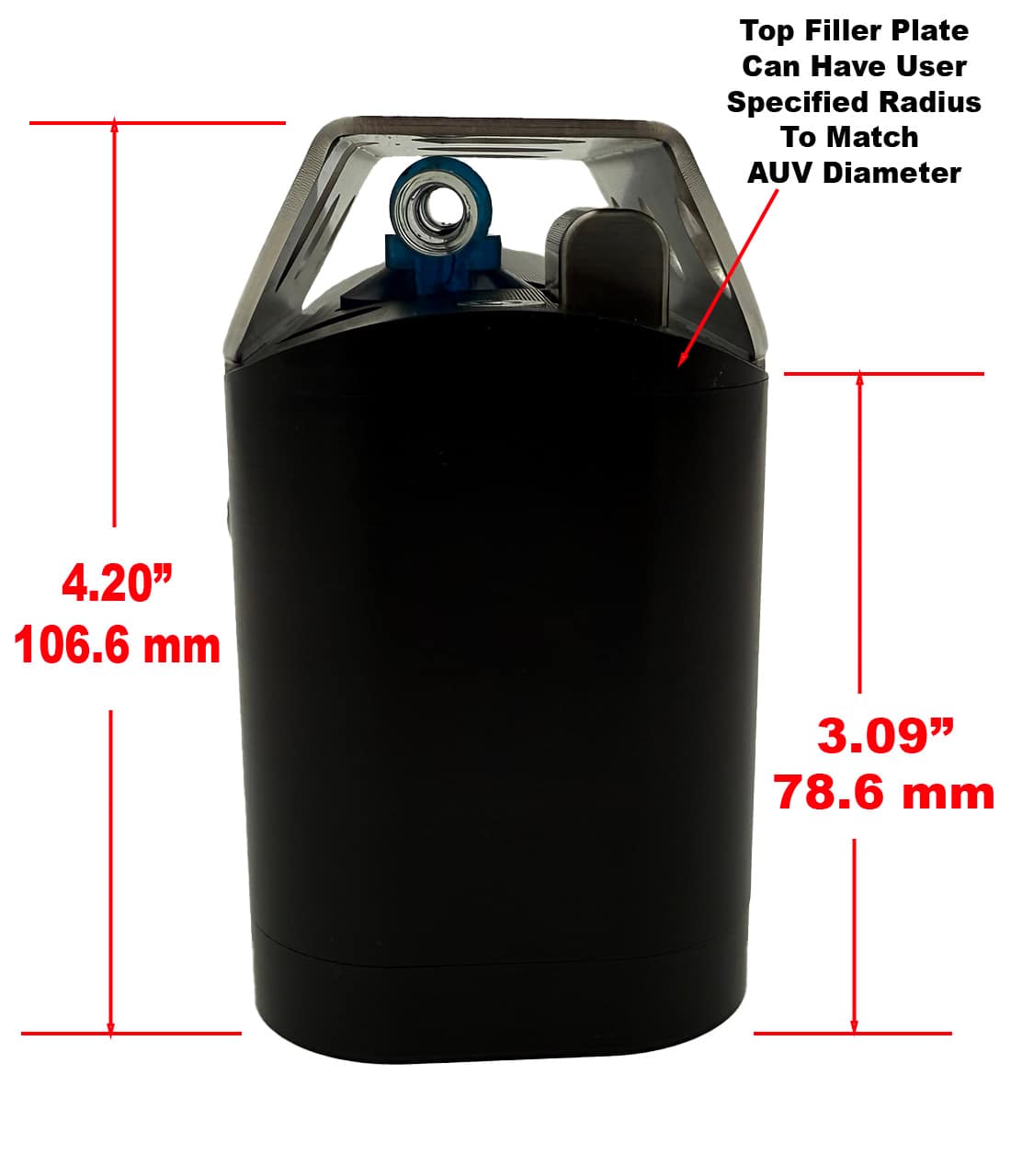

5) Top Plate Can be altered to any Outer Diameter of any vehicle.

6) System Can Be Pumped if Desired

Benefits and Specifications of the D2 AUV CTD

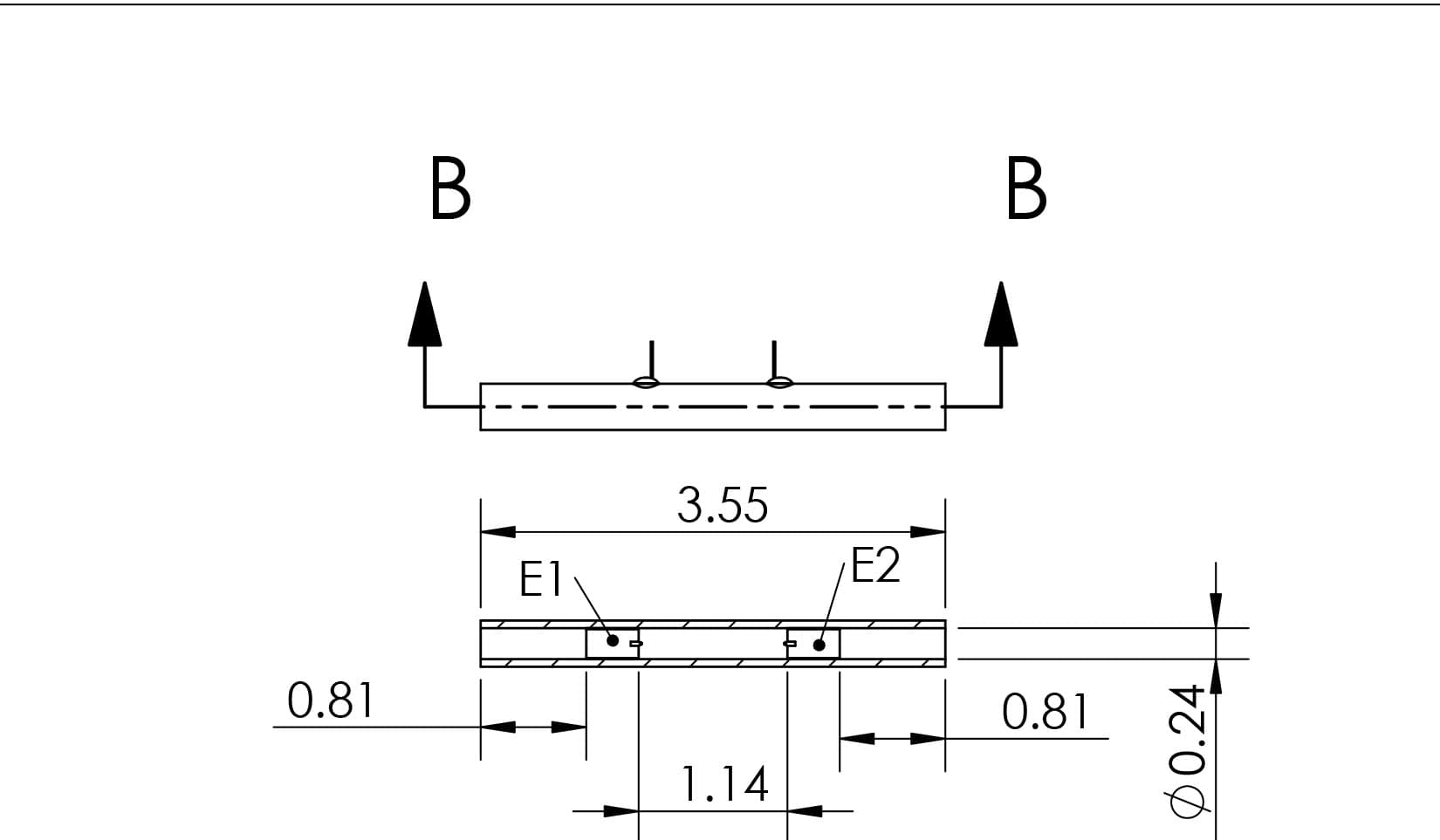

High Precision Conductivity Salinity Measurement: D2 Hybrid Cell provides closed field precision – fully calibrated.

Features:

  • 2-32 Hz Sample Rate (User Set)
    ULP-CTD: 1 or 2 Hz Sample Rate
    200 mA Power Consumption
  • ULP-CTD: 4mA Power Draw
    128 megabyte Internal Memory (not ULP Version)
  • Power Supply: 7-13 VDC
  • Delrin Housing 1250 Meters
  • Real Time Data Output RS-232
  • High Speed Temperature Thermistors
  • Extremely Precise Depth Sensors

Conductivity / Salinity Specifications:

Salinity / Conductivity: Range: 0-7 S/M, Resolution: 0.00004, Initial Accuracy: +/- 0.0003 S/M, Typical Stability: +/- 0.0003

Cell < 0.065 msec Free Flushed @ 100 cm/min Velocity Through Water response

Temperature Specifications:

Temperature: Range: -5C to 35C, Resolution: 0.0002, Initial Accuracy: +/- 0.001, Typical Stability: +/- 0.0002C per Month.

High Speed Probe .065 sec response

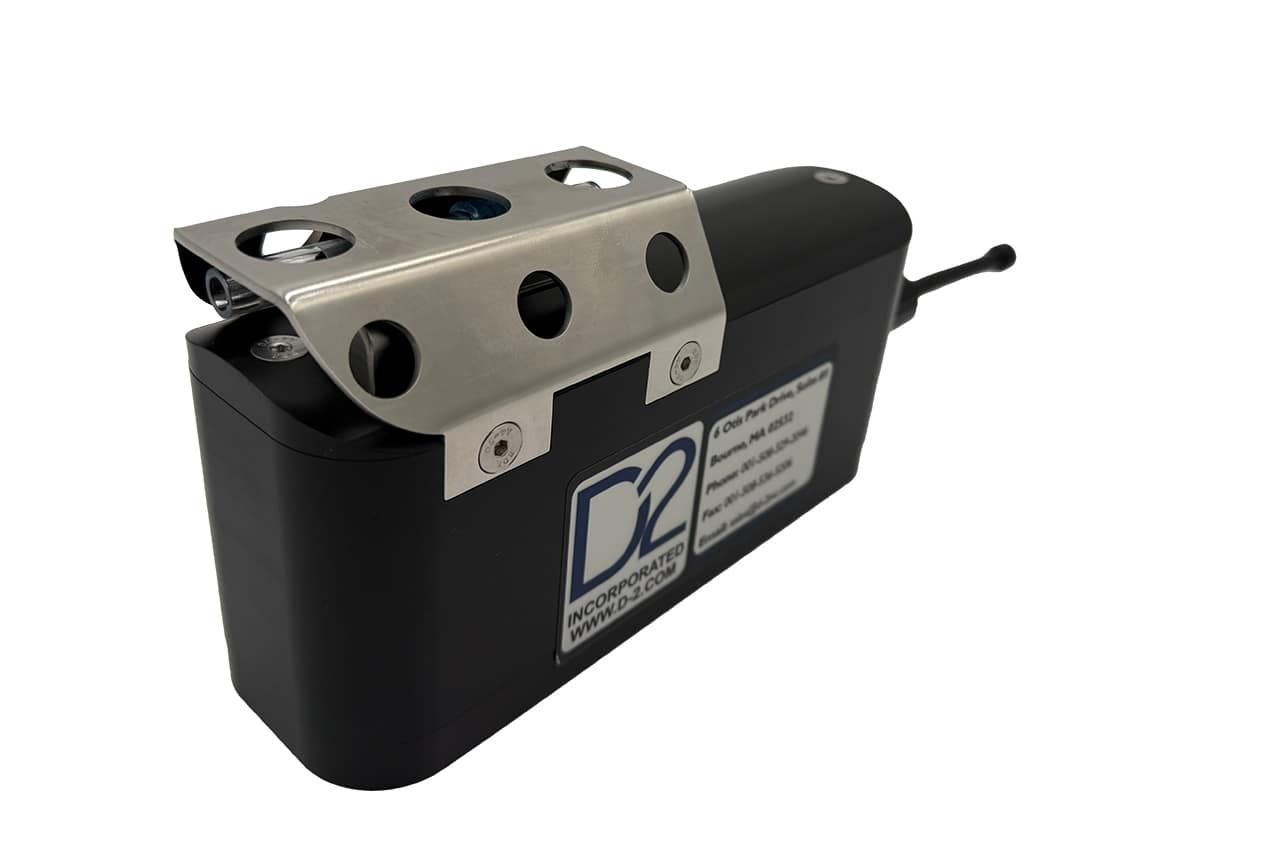

AUV CTD Delrin Housing
Delrin Housing Stainless Steel Cage

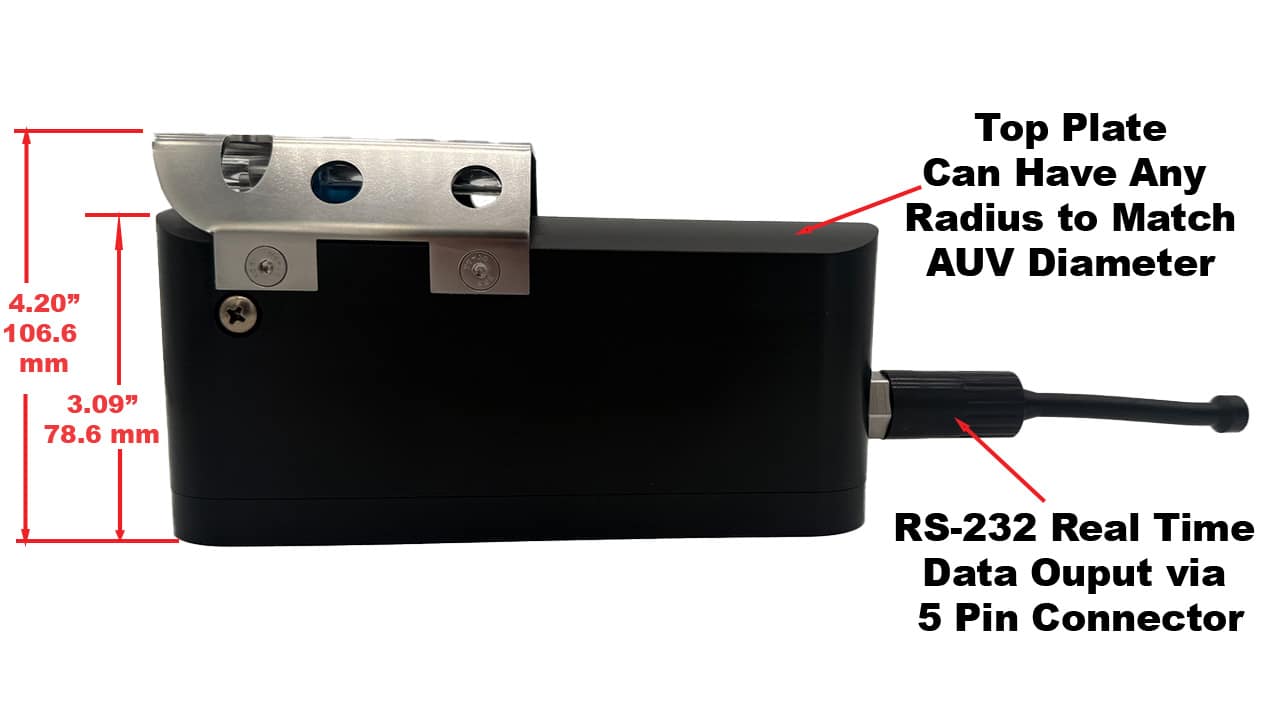

Length: 7.708661 Inches

Width: 2.511811 Inches

Height: 3.094488 Inches

Pressure Transducer/ Depth Specifications:

Depth / Pressure: Range: 0-11,500 dbar (meters) 16679 PSI.

Resolution: 0.001% F.S., +/- 0.015% F.S., +/- 0.02% F.S. Year.

Response < 0.015 Sec

Options:

  1. Pressure Transducer Depth Range
  2. Frame
  3. User Set Depth Options
  4. Ultra Low Power
  5. Top Plate Can be altered to any Outer Diameter of any vehicle.
  6. System Can Be Pumped if Desired
