PEAK Fuel Testing Kit

Petroleum Expeditionary Analysis Kit "PEAK"

PEAK Kit aka Petroleum Expeditionary Analysis Kit is a mobile fuel lab for aviation kerosene in hardened water proof carrying cases compliant to ATPD-2424A. The case is waterproof and drop tested, and all the equipment can work from -30°C to 50°C and this was tested rigorously and certified by Southwest Research. This mobile kit can certify fuel safe for use in aircraft to land on US Aircraft Carriers and for US Army Aviation Turbine Kerosene aka as Jet Fuel use across many platforms.

Full PEAK Product Brochure: PEAK KIT Full Brochure R2

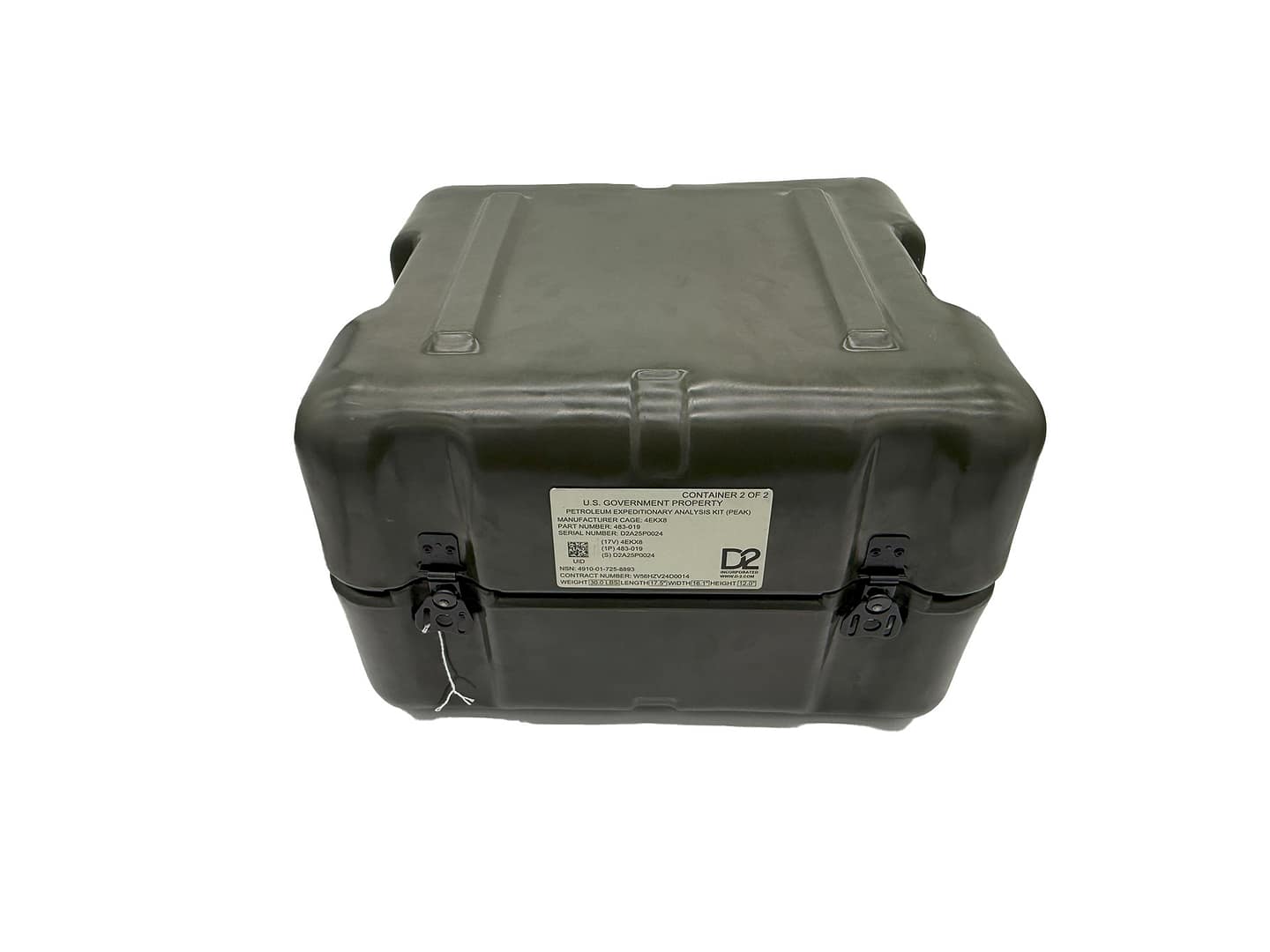

The mobile PEAK Kit comes in two versions: U.S. Army Peak Kit and USMC Peak Kit. The Marine Corps has the larger single case that includes an additional test method the CCCFP Flash Point.

US Army Peak Kit NSN Number: 4910-01-725-8893

USMC Peak Kit NSN Number: 4910-01-725-5931

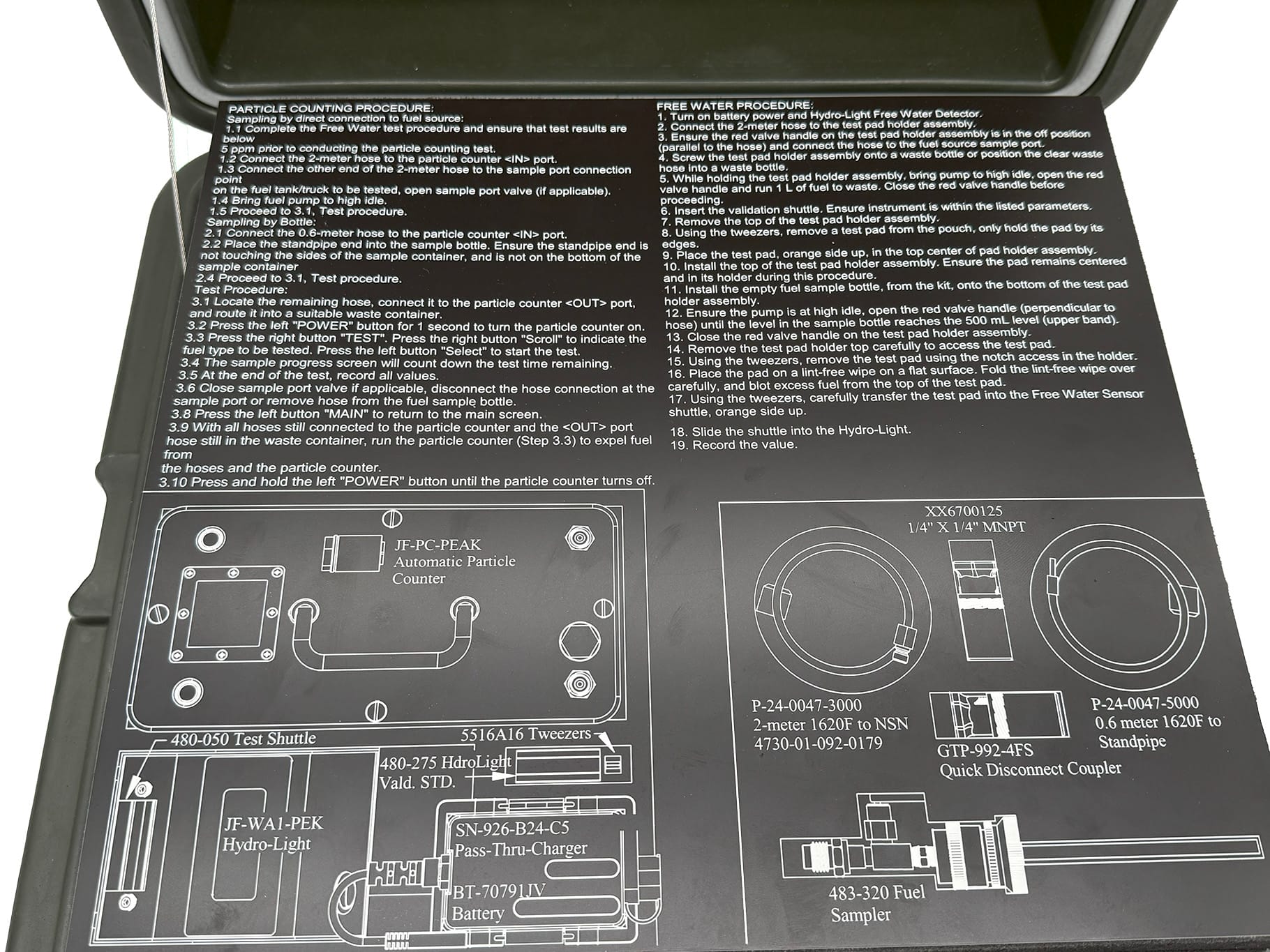

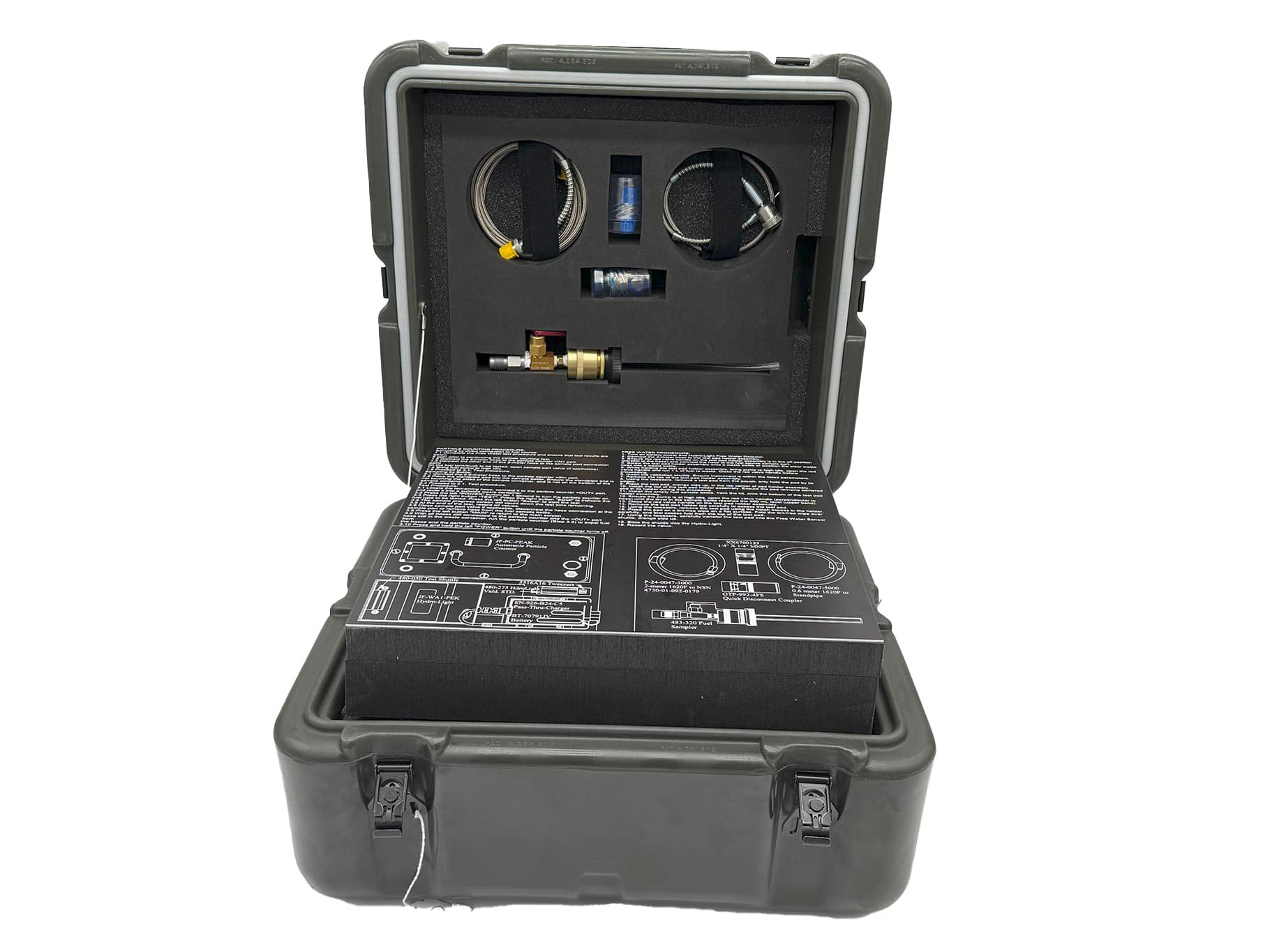

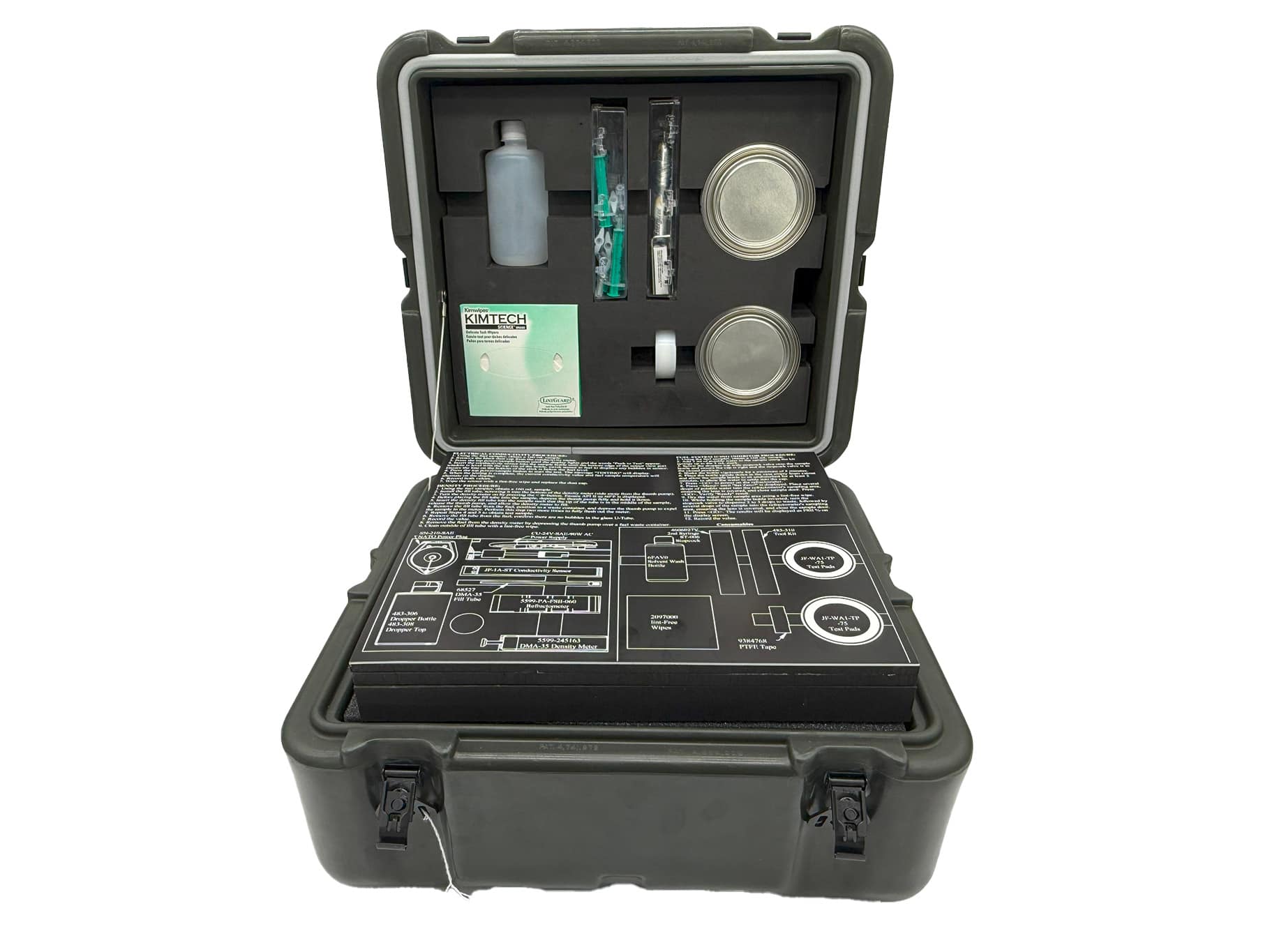

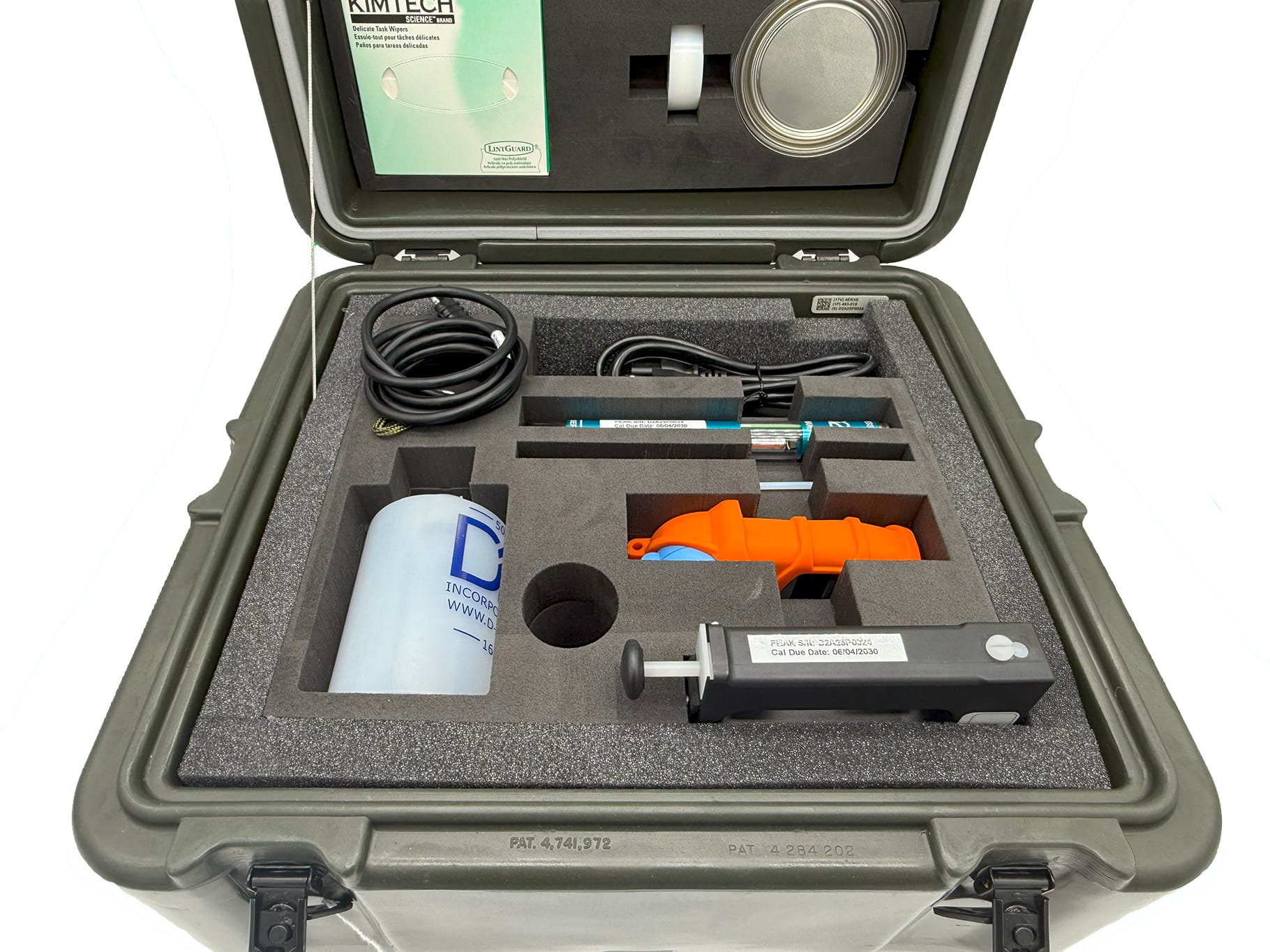

The Kit is able to run the following test methods inside the case as pictured above.

  • JF-1A-ST Hand Held Conductivity ASTM D2624
  • Digital Portable Density Meter ASTM D7777
  • Hydro-Light Free Water Detector ASTM D3240
  • Portable Particle Counter ASTM D7619 (Equivalent)
  • Measurement Of Fuel System Icing Inhibitors FSII ASTM D5006
  • CCCFP Continuous Closed Cup Flashpoint ASTM D6450 (USMC)

The PEAK Kit Case Dimensions:

Peak Kit USMC: 1 Case Weight: 100lbs                                        Dimensions: 37.3in x 21.0in x 17.2in

Peak Kit U.S. Army: 2 Cases,

Case 1 Weight: 33.6lbs                                                                     Dimensions: 17.5in x 16.1in x 12in

Case 2 Weight: 26lbs                                                                        Dimensions: 17.5in x 16.1in x 12in

Mobile Battery Pack:

24 VDC Battery Pack   10 AMPHr

NSN: 6140-01-677-2619     BB-2590/U Battery 298 Wh

Weight: 3.25lbs                                                                                        Dimensions: 4.5in x 2.7in x 5in

Accessories Included:

  • JF-WA1-TP-75: Test Pads for the JF-WA1-N Hydro-Light: 483-230R0, JF-WA1-TP-75 Brochure
  • ¼”NPT to ¼”NPT fitting NSN: 4730-01-232-9608
  • Quick Disconnect Coupler NSN: 4730-01-671-9405
  • Document Envelope NSN: 7510-01-647-7926
  • Laboratory Wipes (286 wipes) NSN: 6640-01-534-0792
  • High-Density Thread Sealant Tape, PTFE, 1/2″ X 520″ NSN: 8030-00-889-3535
  • Sample Tube 180 mm NSN: 6640-01-580-6765
Army PEAK Kit Two Cases

Handheld Conductivity JF-1A-ST Stick ...

JF-1A-ST Handheld Conductivity Meter (Stick)



JF-1A-ST Handheld Ex Conductivity Meter “Stick Conductivity” Brochure

Typical Specifications



Accuracy:

 Listed in ASTM D2624

Measurement Range:

0-2,000 pS/m

Temperature:

 -30°C to 50°C

Operational Temperature:

 -30°C to 50°C

Storage Temperature:

 -33°C to 55°C

Temperature Accuracy:

 +/- 0.5°C

Resolution:

0.1 pS/m and 0.1°C

Data Output:

IRD Data IN/OUT

Sensor Tip:

316 SS/PEEK/VITON Patented AC Technology

Power Supply:

AAA Lithium Battery’s

JF-1A-ST Handheld Ex Conductivity Meter “Stick Conductivity”

Conductivity Measurement of Distillate Fuels

As Per ASTM D2624; IP 274

DEF STAN 91-091; ASTM D1655; ISO 6297

NSN 6625-01-735-6696

  • JF-1A-ST Is Specified in ASTM D2624 & IP 274
  • Precise Measurement of Fuel Conductivity & Temperature
  • Standard Range 0 – 2,000 pS/m
  • FM, FMC, ATEX, IECEX Explosion Proof Hazardous Area Measurement
  • Replaceable AAA Batteries. Note: Energizer LN92 Batteries MUST Be Used to Maintain Hazardous Zone Certification.

Density Measurement Anton Paar DMA 35

NSN: 6635-01-485-9637 DMA-35 Density Meter

For Full Product Brochure Click on Image

Typical Specifications



Accuracy:

 Listed in ASTM D7777

Measurement Range:

0 g/cm3 to 3 g/m3

Temperature:

 0°C to 40°C (32°F to 104°F)

Viscosity:

 0 mPa×s to 1000 mPa×s

Accuracy:

 Density: 0.001 g/cm3

Temperature: 0.2°C (0.4°F)

Repeatability:

 Density: 0.0005  g/cm3

Temperature: 0.1°C (0.2°F)

Resolution:

Density: 0.0001 g/cm3

Temperature: 0.1°C (0.1°F)

Reproducibility, s.d.

Density: 0.0007  g/cm3

Ambient Temperature:

 -30°C to 50°C (14°F to 122°F)

Internal Memory:

1024 Measurement Results

Power Supply:

2 AA 1.5V Alkaline Batteries

Sample Size:

2 mL

Dimensions:

140 mm x 138 mm x 27 mm

Weight:

345 g (12.2 Ounces)

Portable Closed Cup Continuous Flash Point CCCFP EraFlash

Full Product Brochure Click on Image

Typical Specifications



Test Methods:

 ASTM D6450, ASTM D7094, IP620, SH/T 0768,
US D.O.T / RCRA / NAVY and NATO reference methods

PBT – Peltier Boost Technology®

High speed heating & cooling
-25 °C to 420 °C (-13 °F to 788 °F) with a single analyzer

CPT – Contamination Prevention Technology™

Advanced electrode protection and self-cleaning ignition system to minimize cleaning and maintenance

QuickCal™

 In-situ calibration with eralytics unique calibration cups without the need of dismantling the instrument

Temperature Range:

 -30°C to 50°C (90% Humidity)

Temperature Stability:

 0.1 °C (0.2 °F)

Sample Throughput:

12 Samples Per Hour

Internal Memory:

100,000 Detailed Test Reports

Power Supply:

PEAK Battery

Sample Size:

1 mL (ASTM D6450), 2 mL (ASTM D7094, IP620)

Dimensions:

19.6 cm x 31.5 cm x 17.5 cm

Weight:

6.8 kg aka 15.1 lbs

Hydro-Light Portable Digital Free Water Detector JF-WA1

Hydro-Light ASTM D3240
Click Image for Full Product Brochure
Hydro-Light ASTM D3240

Typical Specifications



Accuracy:

 Listed in ASTM D3240

Measurement Range:

0 – 50 ppm

Accuracy:

 +/- 1 ppm

Resolution:

0.1 ppm

Ambient Temperature:

 -30°C to 50°C

Power Supply:

External Provided Lithium Battery

Sample Size:

500 mL

Dimensions:

4” x 4” x 4”

Weight:

2.5 lbs

NSN Numbers:

JF-WA1-N: NSN 6640-01-642-9285

JF-WA1-AF: NSN 6640-01-680-6773

Portable Waterproof Particle Counter for Aviation Fuel

Portable Fuel Particle Counter
Click Image for Full Product Brochure
Portable Fuel Particle Counter Backpack

Typical Specifications



Accuracy:

 ASTM D7619 Equivalent

Measurement Range:

4 mm(c) to 100 mm(c)

Size Bands:

 4 mm(c),  mm(c),  mm(c),  mm(c)

Sample Volume:

 80 mL for ASTM D7619, 20 mL test

Cts Per Measurement:

60,000 per mL

Ambient Temperature:

 -30°C to 50°C (14°F to 122°F)

Power Supply:

External Provided Lithium Battery

Results:

900 Results

Dimensions:

25 cm x 14.5 cm x 35 cm

Weight:

7.5 kg

Power Consumption

PEAK Battery Pack

Portability:

Can Be Equipped With a Back Pack

Palm Abbe PA202 Digital Refractometer FSII

misco-copy
Click Image for Full Product Brochure

Typical Specifications



Accuracy:

 ASTM D5006

Measurement Range:

0.0  to 85.0 Brix

1.3330 to 1.5040 nD

Precision:

 +/- 0.1 Brix

+/- 0.0001 nD

Sample Volume:

 0.3 mL

Temp. Comp. Range:

-30°C to 50°C

Measuring Time:

 5 seconds

Power Supply:

2 x AAA Batteries

Battery Life:

4000+ Readings

Dimensions:

145 mm x 75 mm x 37 mm

Weight:

250 grams (8.8 oz.)

ModelJF-PEAK-M
NSN4910-01-725-5931

Item#Part #NSN#Spec. Ref.Description QTY
 483-0724910-01-725-5931 USMC PEAK Assembly
1483-030N/A3.6.1IUID Plate1
21406-AL3418-1005W8145-01-732-85683.5Pelican AL3418-1005W Green1
3TA244-12990-01-579-92773.2.4Immersion Vent5
47510-00-NIB-99557510-01-647-79263.4.2.5Document Envelope (secured to case)1
5483-0778145-01-732-90703.5Foam, Top Insert USMC 2#PUE1
6483-0788145-01-732-90623.5Foam, Bottom Insert USMC, Combination 2#PUE & 2#PE1
7483-0738145-01-732-90763.4.2.2 3.4.2.3Foam 2#PE Insert with laser engraved Loading Diagram, Right Side1
8483-0748145-01-732-9082 Foam 2#PE Insert with laser engraved Loading Diagram – Left Side1
9483-0768145-01-732-90643.4.2.1Consumables Foam Insert1
10JF-PC-PEAK6635-01-735-71293.4.1.2.1D2 Inc. PEAK Particle Counter1
11JF-WA1-PEAK6635-01-735-71693.4.1.3Hydro-Light Digital Free Water Detector1
12480-0506630-01-670-49673.4.1.3Assy, JF-WA1, Shuttle, Pad Holder1
13483-1404910-01-735-61723.4.1.3Base, Hydro-Light Standard Holder, Case1
14480-275N/A3.4.1.3ASSY, Polymer Standard Shuttle1
155516A165120-01-735-58603.4.1.3Tweezers1
16BT-70791JV 6140-01-677-26193.4.2.9BB-2590/U Battery 298 Wh2
17SN-926-B24-C46130-01-735-74043.4.2.9BB-2590 24V/24N Pass-Thru charger to Nett WarX2&2.5X 5.5mm1
18P-24-0047-20004720-12-428-38793.3Hose, Hydraulic 1620F – NSN 168-01-132-9426 , 2M LG, Spring1
19P-24-0047-50004720-12-428-38763.3Hose, Hydraulic 1620F – Standpipe, 60CM LG1
202108T738110-01-732-85153.3.2Round Adjustable-Length Shipping Tube-Large1
212108T688110-01-732-85853.4Round Adjustable-Length Shipping Tube-Small1
22GTP-235-3/84730-01-271-79813.3.2Quick Disconnect Coupler (In Large Shipping Tube)1
23483-3204730-01-733-47653.4.2.4Hydro-Light Pad Sampler Assembly 1
24JF-WA1-TP-756630-01-732-85373.4.2.1Test Pads for ASTM D3240 Test, Box 752
2520970006640-01-534-07923.4.2.12Laborator Wipes (286 wipes)1
2693847688030-00-889-35353.4.2.6High-Density Thread Sealant Tape, PTFE, 1/2″ X 520″1
27A2168145-01-732-85343.4.2.1A-Series 6.75″ X 3.19″ X 1.19″ one-compartment box 1
284606027V 3.4.2.12ml Syringe10
29ST-0066640-01-735-71014.4.2.1Stopcock with Luer Slip and Female Luer 10
30A2068145-01-732-83563.4.2.1A-Series 8.31″ X 4.5″ X 1.375″ one-compartment box 2
31DP4132-006640-01-735-69123.4.2.11ml Pipette, Lab Safety 150
32JF-1A-ST6625-01-735-66963.4.1.5Stick Handheld Fuel Conductivity1
339753K545340-01-732-85293.4.1.5JF-1A-ST Protective Sensor Cap1
34841386635-01-485-96373.4.1.1DMA-35 Density Meter 1
35685276640-01-580-67653.4.1.1Sample Tube 180 mm1
365599-PA-FSII-0606650-01-735-66653.4.1.4Digital Refractometer W/ Protective Jacket1
37483-3066640-01-735-69243.4.1.4Graduated 500 ml Plastic Bottle 1
38483-3086640-01-735-69633.4.1.433-400 Bottle Dropper Top1
39SN-210-SAE6150-01-735-69983.4.2.10NATO Plug 15 Amp Terminated with SAE Connector1
40SN-24V-SAE6130-01-735-69333.4.2.1124DC POWER ADAPTER W/SAE 100-250V w/ Power Cable1
418001-6FAV06640-01-197-29583.4.2.7Bottle Wash 250ml w/ top1
42483-3076640-01-735-67173.3.3Glass Bottle 950 ml clear etched @ 160, 500 and 660ml w/ top2
